AWS Elastic Load Balancing with openSUSE instance in AWS 測試小記

OS: openSUSE Leap 15

AWS CLI: 1.16.135

準備工作:

參考昨天自己的筆記建立兩個 openSUSE instances in AWS

https://sakananote2.blogspot.com/2019/04/aws-cli-opensuse-leap-15-in-aws-ec2.html

因為要測試 Load Balancing

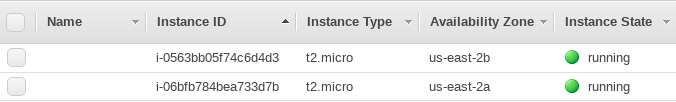

建立的 EC2 instance 分別隸屬於不同的 subnet ( 不同的 Availability Zone )

在兩台 openSUSE Leap 15 instance ( 兩台 instances 都要做 )

==== 在 openSUSE instances 內 ====

切換成 root

> sudo su -

安裝 apache2 套件

# zypper install apache2

Building repository 'openSUSE-Leap-15.0-Non-Oss' cache ..................................................................................................[done]

Building repository 'openSUSE-Leap-15.0-Oss' cache ......................................................................................................[done]

Loading repository data...

Reading installed packages...

Resolving package dependencies...

The following 11 NEW packages are going to be installed:

apache2 apache2-prefork apache2-utils git-web libapr-util1 libapr1 libbrotlicommon1 libbrotlienc1 libgc1 system-user-wwwrun w3m

The following recommended package was automatically selected:

w3m

11 new packages to install.

Overall download size: 3.3 MiB. Already cached: 0 B. After the operation, additional 8.8 MiB will be used.

Continue? [y/n/...? shows all options] (y): Y

啟動 apache 服務 ( Web )

# systemctl start apache2

觀察服務狀態

# systemctl status apache2

● apache2.service - The Apache Webserver

Loaded: loaded (/usr/lib/systemd/system/apache2.service; disabled; vendor preset: disabled)

Active: active (running) since Sat 2019-04-06 11:29:18 UTC; 3s ago

Main PID: 2000 (httpd-prefork)

設定開機啟動服務

# systemctl enable apache2

Created symlink /etc/systemd/system/httpd.service → /usr/lib/systemd/system/apache2.service.

Created symlink /etc/systemd/system/apache.service → /usr/lib/systemd/system/apache2.service.

Created symlink /etc/systemd/system/multi-user.target.wants/apache2.service → /usr/lib/systemd/system/apache2.service.

建立測試網頁 ( 不同 site 帶不同的數字 )

# vi /srv/www/htdocs/index.html

=============================

接下來在建立一個 security group 可以允許 port 80 連入

> aws ec2 create-security-group --group-name testweb-sg --description "Test Web"

> aws ec2 authorize-security-group-ingress --group-name testweb-sg --protocol tcp --port 80 --cidr 0.0.0.0/0

接下來使用 aws 指令來將剛剛的 instance 掛上 test-sg ( port 22 ) 以及 testweb-sg ( port 80 )兩個 security group

參考 https://sharadchhetri.com/2015/04/01/attach-security-groups-to-existing-instance-with-aws-cli/

針對兩個 instance 來修改

> aws ec2 modify-instance-attribute --instance-id i-0563bb05f74c6d4d3 --groups "sg-09422cde3af0f76cb" "sg-0e725fc07ae70c8a8"

> aws ec2 modify-instance-attribute --instance-id i-06bfb784bea733d7b --groups "sg-09422cde3af0f76cb" "sg-0e725fc07ae70c8a8"

Instance-id 請換成自己的 id
--groups 後面請填上 security-group-id

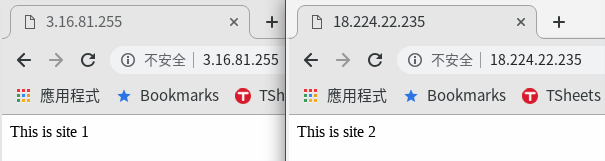

測試網站存取

針對兩個 instance 的 Public IP 來存取

參考官方文件:

使用 AWS CLI 來建立 Application Load Balancer https://docs.aws.amazon.com/zh_tw/elasticloadbalancing/latest/application/tutorial-application-load-balancer-cli.html
使用以路徑為基礎的路由與 Application Load Balancer 搭配使用 https://docs.aws.amazon.com/zh_tw/elasticloadbalancing/latest/application/tutorial-load-balancer-routing.html

驗證是否有支援 ELB

> aws elbv2 help

如果有出現指令說明就是有支援

使用 aws 指令建立 load balancer

> aws elbv2 create-load-balancer --name test-elb --subnets subnet-92dfe4fb subnet-e4e8989e --security-groups sg-0e725fc07ae70c8a8

建立一個 test-elb, 與 2 個 subnet 和 1 個 security group

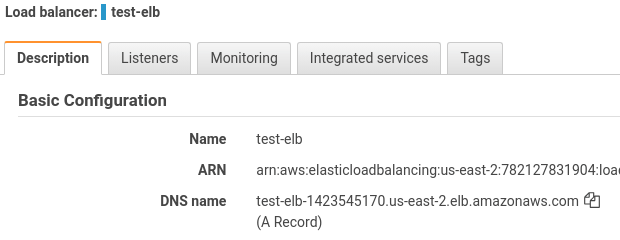

到 Manage console 觀察

目前的狀態是 provisioning ( 配置 )

Listeners 是空的

使用 aws 指令建立 target group

> aws elbv2 create-target-group --name test-target --protocol HTTP --port 80 --vpc-id vpc-c42635ac

這邊要指定 vpc-id 不能使用預設的方式

可以到 Manage console 觀察

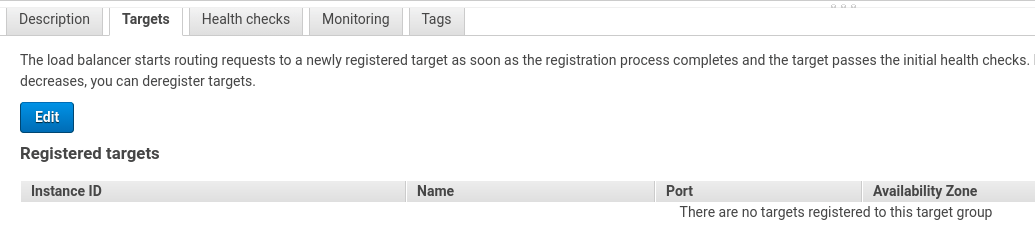

順便觀察 Registered targets , 目前為空

接下來用 aws 指令將 instance 註冊到 target

> aws elbv2 register-targets --target-group-arn arn:aws:elasticloadbalancing:us-east-2:772127831904:targetgroup/test-target/732b4ddaff306e56 --targets Id=i-0563bb05f74c6d4d3 Id=i-06bfb784bea733d7b

Target-group-arn 用剛剛建立起來的 arn
--targets 後面接 2 個 openSUSE instance id

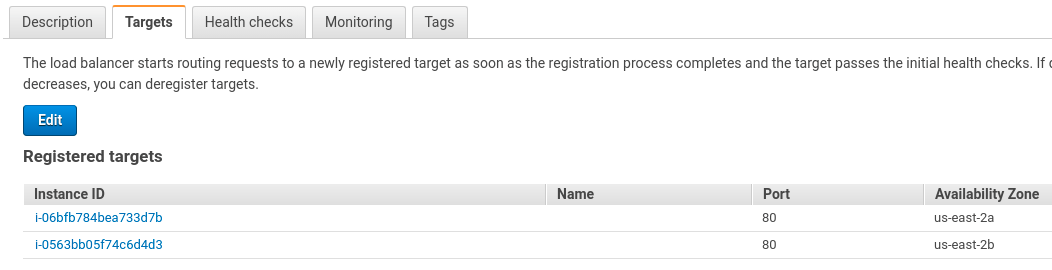

再次觀察 Registered targets

最後使用 aws 指令建立 listener

> aws elbv2 create-listener --load-balancer-arn arn:aws:elasticloadbalancing:us-east-2:772127831904:loadbalancer/app/test-elb/00d35f538d194bd1 --protocol HTTP --port 80 --default-actions Type=forward,TargetGroupArn=arn:aws:elasticloadbalancing:us-east-2:772127831904:targetgroup/test-target/742b4ddaff306e56

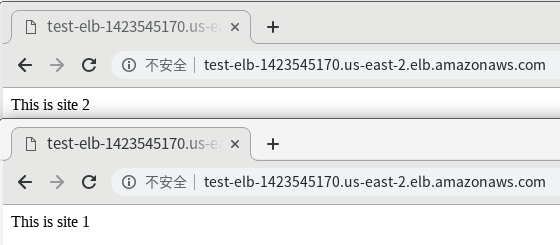

到 Manage Console 觀察 test-elb 的 Listeners
