NFS Server with openSUSE Leap 42.3

NFS Server with openSUSE Leap 42.3

OS: openSUSE Leap 42.3

目的: 提供 NFS version 3 and NFS version 4 檔案分享

使用 zypper 安裝相關套件

# zypper   install   yast2-nfs-server
Loading repository data...
Reading installed packages...
Resolving package dependencies...

The following 2 NEW packages are going to be installed:
 nfs-kernel-server yast2-nfs-server

The following recommended package was automatically selected:
 nfs-kernel-server

2 new packages to install.
Overall download size: 241.2 KiB. Already cached: 0 B. After the operation, additional 659.3 KiB will be used.
Continue? [y/n/...? shows all options] (y):

建立分享目錄

# mkdir   /dmshare

設定權限
# chmod  o+w   /dmshare/

還沒設定前, 先觀察相關資訊

# rpcinfo  -p  localhost
localhost: RPC: Port mapper failure - Unable to receive: errno 111 (Connection refused)

# cat   /etc/exports
# See the exports(5) manpage for a description of the syntax of this file.
# This file contains a list of all directories that are to be exported to
# other computers via NFS (Network File System).
# This file used by rpc.nfsd and rpc.mountd. See their manpages for details
# on how make changes in this file effective.

# systemctl  status   nfsserver.service
● nfsserver.service - Alias for NFS server
  Loaded: loaded (/usr/lib/systemd/system/nfsserver.service; disabled; vendor preset: disabled)
  Active: inactive (dead)

檢查 NFS4_SUPPORT 是否有啟用

# grep  NFS4   /etc/sysconfig/nfs
NFS4_SUPPORT="yes"
NFS4_SERVER_MINOR_VERSION="0"


使用 YaST 方式設定 NFS
啟動 yast2  nfs_server 模組

# yast2   nfs_server

點選  Start  -- > 點選 Next

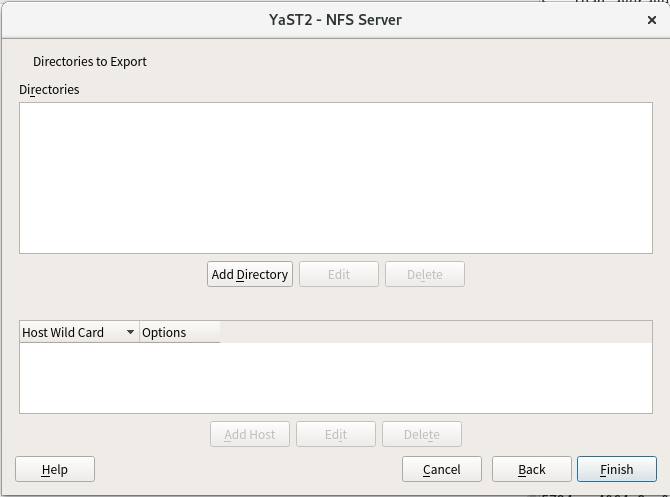

設定要分享的目錄
點選 Add Directory


輸入或是選取要分享的目錄, 這邊以 /dmshare 為例
點選 OK


接下來針對分享目錄的設定
針對 主機或是選項進行調整, 請注意預設值選項有 ro ( read-only )
點選 OK



確認相關資訊 -- > 點選 Finish




觀察相關資訊,
這邊會看到 v3 的 port 111 with portmapper 以及 v4 port 2049

# rpcinfo  -p   localhost
  program vers proto   port  service
   100000    4   tcp    111  portmapper
   100000    3   tcp    111  portmapper
   100000    2   tcp    111  portmapper
   100000    4   udp    111  portmapper
   100000    3   udp    111  portmapper
   100000    2   udp    111  portmapper
   100024    1   udp  47009  status
   100024    1   tcp  40382  status
   100005    1   udp  20048  mountd
   100005    1   tcp  20048  mountd
   100005    2   udp  20048  mountd
   100005    2   tcp  20048  mountd
   100005    3   udp  20048  mountd
   100005    3   tcp  20048  mountd
   100003    3   tcp   2049  nfs
   100003    4   tcp   2049  nfs
   100227    3   tcp   2049  nfs_acl
   100003    3   udp   2049  nfs
   100003    4   udp   2049  nfs
   100227    3   udp   2049  nfs_acl
   100021    1   udp  58709  nlockmgr
   100021    3   udp  58709  nlockmgr
   100021    4   udp  58709  nlockmgr
   100021    1   tcp  44774  nlockmgr
   100021    3   tcp  44774  nlockmgr
   100021    4   tcp  44774  nlockmgr


觀察設定檔 /etc/exports, 這邊我有針對特定網段才能進行連線, 以及給 rw 設定
# cat   /etc/exports
/dmshare xxx.xxx.xxx.0/24(rw,root_squash,sync,no_subtree_check)

觀察服務狀態

# systemctl  status  nfsserver.service
● nfsserver.service - Alias for NFS server
  Loaded: loaded (/usr/lib/systemd/system/nfsserver.service; enabled; vendor preset: disabled)
  Active: active (exited) since Thu 2018-02-08 10:48:30 CST; 4min 26s ago
 Process: 9921 ExecStart=/bin/true (code=exited, status=0/SUCCESS)
Main PID: 9921 (code=exited, status=0/SUCCESS)
   Tasks: 0 (limit: 512)
  CGroup: /system.slice/nfsserver.service

Feb 08 10:48:30 nfs systemd[1]: Starting Alias for NFS server...
Feb 08 10:48:30 nfs systemd[1]: Started Alias for NFS server.

因為是使用 YaST 設定的, 所以會把開機啟動也設定完成

# systemctl  is-enabled  nfsserver.service
enabled


接下來進行相關測試
於用戶端進行掛載測試

Client side:
觀察Server 分享目錄
# showmount  -e   對方IP

建立掛載目錄
# mkdir   /mnt/nfs

測試掛載
# mount   xxx.xxx.xxx.xxx:/dmshare   /mnt/nfs

觀察掛載狀況 , 這邊很有趣的是, 不需要特別指定 type 就會掛載 nfs v4

# mount | grep  dmshare
xxx.xxx.xxx.xxx:/dmshare on /mnt/nfs type nfs4 (rw,relatime,vers=4.0,rsize=524288,wsize=524288,namlen=255,hard,proto=tcp,port=0,timeo=600,retrans=2,sec=sys,clientaddr=xxx.xxx.xxx.xxx,local_lock=none,addr=xxx.xxx.xxx.xxx)

測試建立檔案
# touch   /mnt/nfs/nfstest

觀察資訊, 因為有做 root_squash , 所以會被轉成 nobody
# ls  -l  /mnt/nfs/
total 0
-rw-r--r-- 1 nobody nogroup 0 Feb  8 11:31 nfstest


同場加映, 如何知道 NFS version 4 client 連線狀況

在 Server 端

# netstat | grep :nfs
tcp        0      0 linux-xp5z.suse:nfs     xxx.xxx.xxx.xxx:726      ESTABLISHED



Reference



~ enjoy it
