openStack CL210課程筆記 - Day 1

20141027

重新開機 F8 - 選擇 PXE 開機
分配到 Desktop 5


公有雲私有雲介紹


Chapter 2 Install Red Hat openStack  11:26

iproute版本  >=  2.6.32-130.el6ost.netns.2  版本, openstack 才可以運作

Lab: workshop Install openstack with packstack

在虛擬機器
[root@server5 ~]#yum update

參考 workbook p13
[root@server5 ~]# yum  install  -y  openstack-packstack

[root@server5 ~]# ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
08:79:3d:e6:ec:b7:ef:bc:b8:3d:22:98:d9:75:ec:b8 root@server5.example.com
The key's randomart image is:
+--[ RSA 2048]----+
|              |
| . .      |
| o . +     |
| o = .    |
|   . S  . |
|    .  . o |
|    =...+ |
|   + o.o=o |
|      .E**o   |
+-----------------+


[root@server5 ~]# packstack   --gen-answer-file  /root/answers.txt

[root@server5 ~]# vi  /root/answers.txt
修改  NTP 伺服器ip以指定相關設定
CONFIG_SSH_KEY=/root/.ssh/id_rsa.pub
CONFIG_NTP_SERVERS=192.168.0.254
CONFIG_HORIZON_SSL=y

[root@server5 ~]# egrep 'SSH_KEY|NTP_|N_SSL|ADMIN_P'  /root/answers.txt
CONFIG_SSH_KEY=/root/.ssh/id_rsa.pub
#CONFIG_NTP_SERVERS=
CONFIG_NTP_SERVERS=192.168.0.254
#CONFIG_KEYSTONE_ADMIN_PW=1756ce8668c9497c
CONFIG_KEYSTONE_ADMIN_PW=redhat
#CONFIG_HORIZON_SSL=n
CONFIG_HORIZON_SSL=y

透過 packstack 安裝 openstack
[root@server5 ~]# packstack   --answer-file  /root/answers.txt
Welcome to Installer setup utility

Installing:
Clean Up...                                         [ DONE ]
Setting up ssh keys...root@192.168.0.105's password:




==== 中午休息 ====

有修改進行的順序

建立 bridge netowrk
workbook p22 step 10

[root@server5 ~]# cp  /etc/sysconfig/network-scripts/ifcfg-eth0  /root/
[root@server5 ~]# cp   /etc/sysconfig/network-scripts/ifcfg-eth0  /etc/sysconfig/network-scripts/ifcfg-br-ex

[root@server5 ~]# vi   /etc/sysconfig/network-scripts/ifcfg-eth0
去除不必要的設定只留下
DEVICE=eth0
HWADDR=52:54:00:00:00:05
ONBOOT=yes

[root@server5 ~]# vi   /etc/sysconfig/network-scripts/ifcfg-br-ex
修改 DEVICE 移除 HWADDR
DEVICE=br-ex
IPADDR=192.168.0.105
PREFIX=24
GATEWAY=192.168.0.254
DNS1=192.168.0.254
SEARCH1=example.com
ONBOOT=yes


透過 ovs-vsctl 將網卡綁在一起
workbook p23 step 11
[root@server5 ~]# ovs-vsctl   add-port  br-ex eth0;  service network  restart

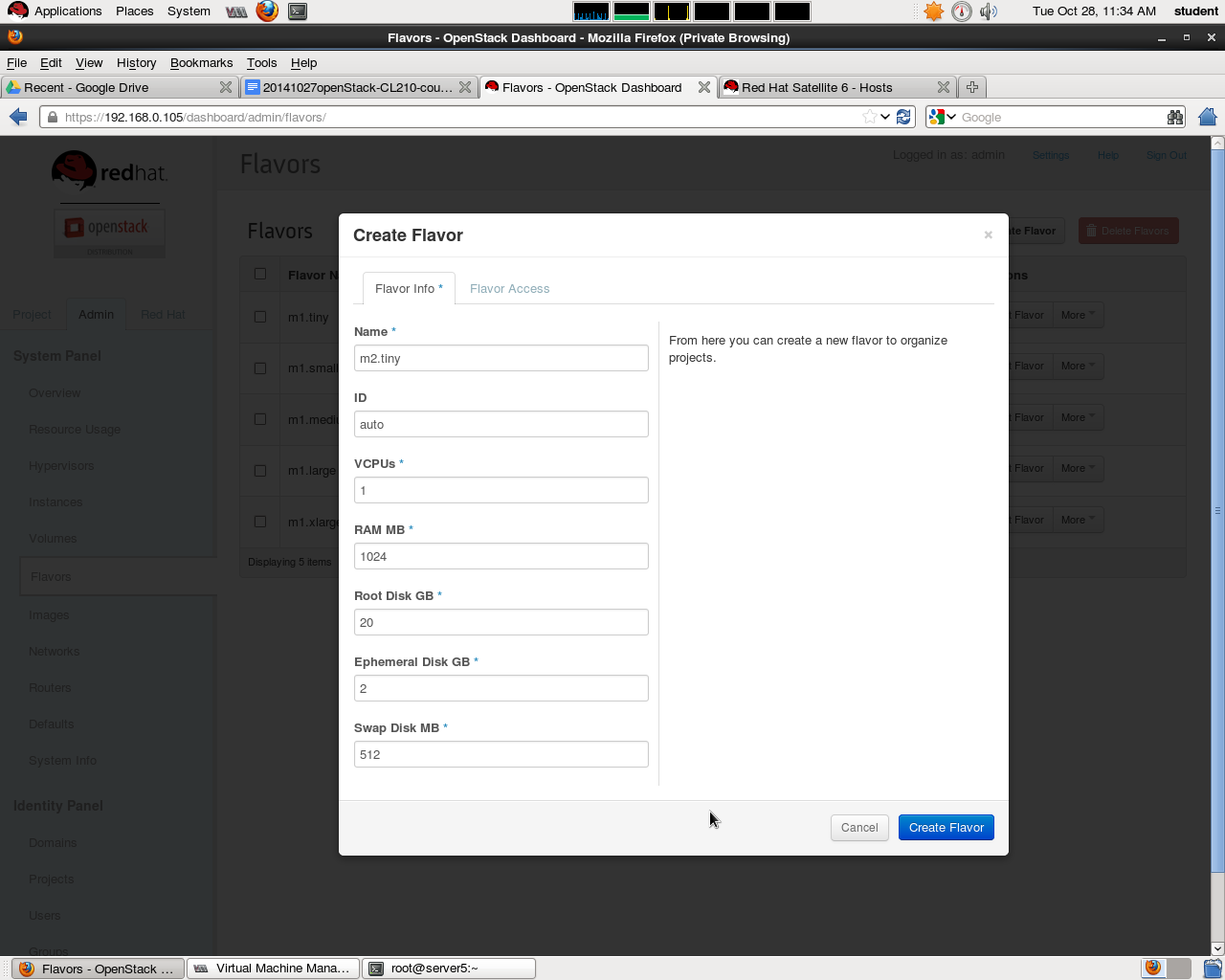

修改 Flavor 規格


workbook p18

https://192.168.0.x (工作主機)
使用  admin  密碼 redhat

點選  Flavors


點選  Create Flavor,  依照 workbook 建立Flavor , 點選 Create Flavor


------- 以上角色為 營運商角色 --------

接下來以客戶( tenants ) 角色來實作

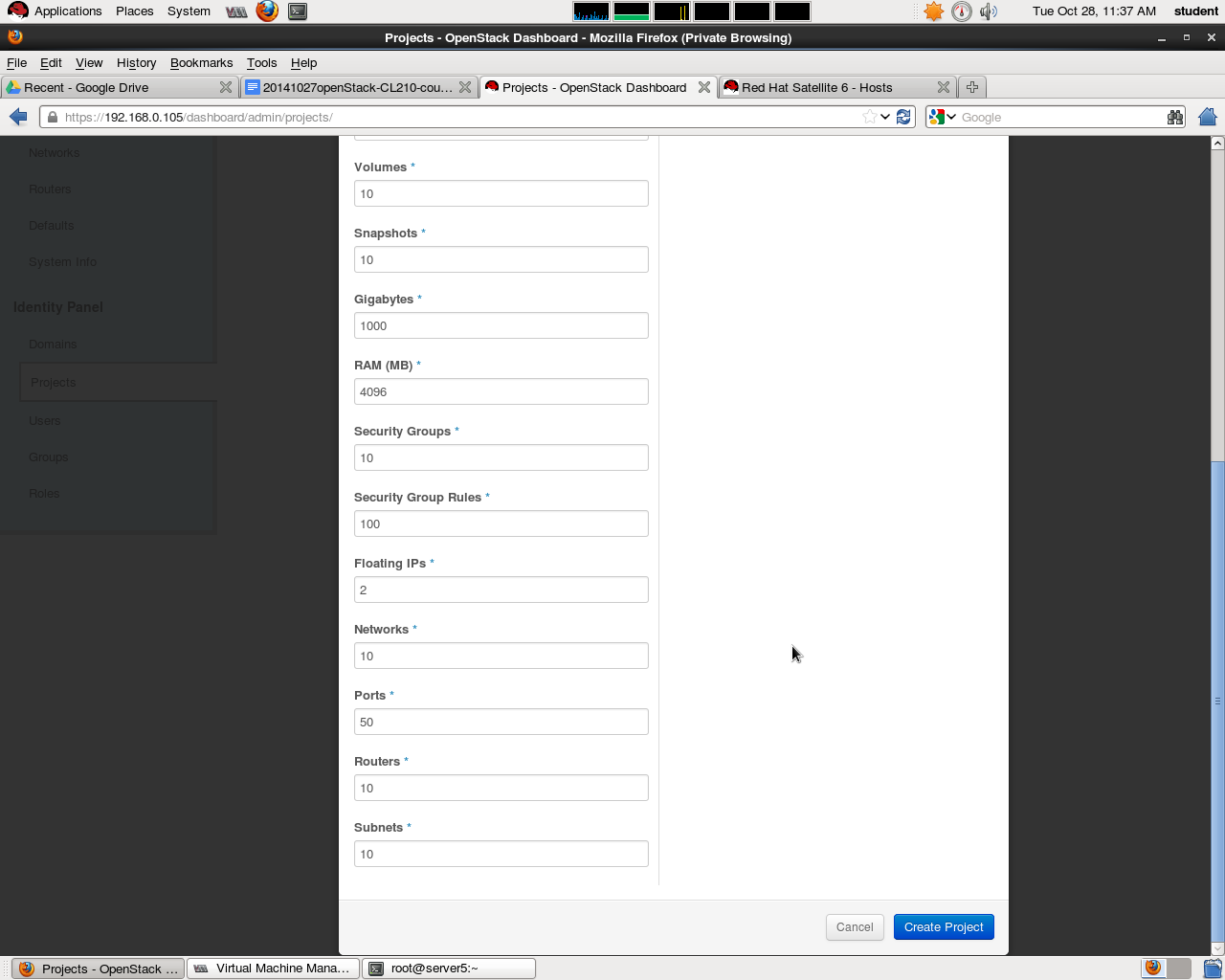

建立 project1 這個project
workbook p17

點選  Projects
點選  Create Project,  依照 workbook 建立Project , 點選 Create Project



建立 project 1 的使用者帳戶
workbook p19

點選  Users
點選  Create User,  依照 workbook 建立User , 點選 Create User

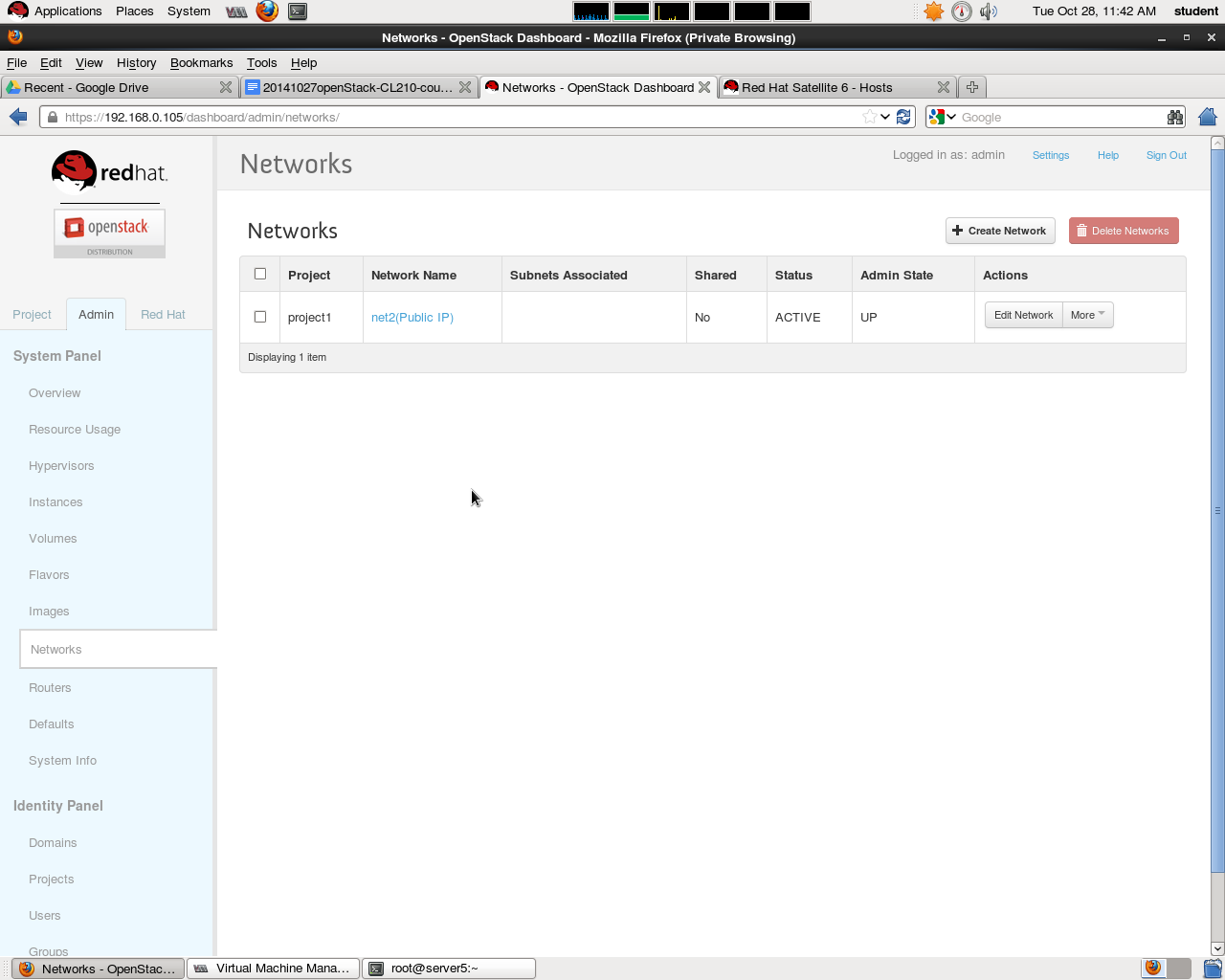

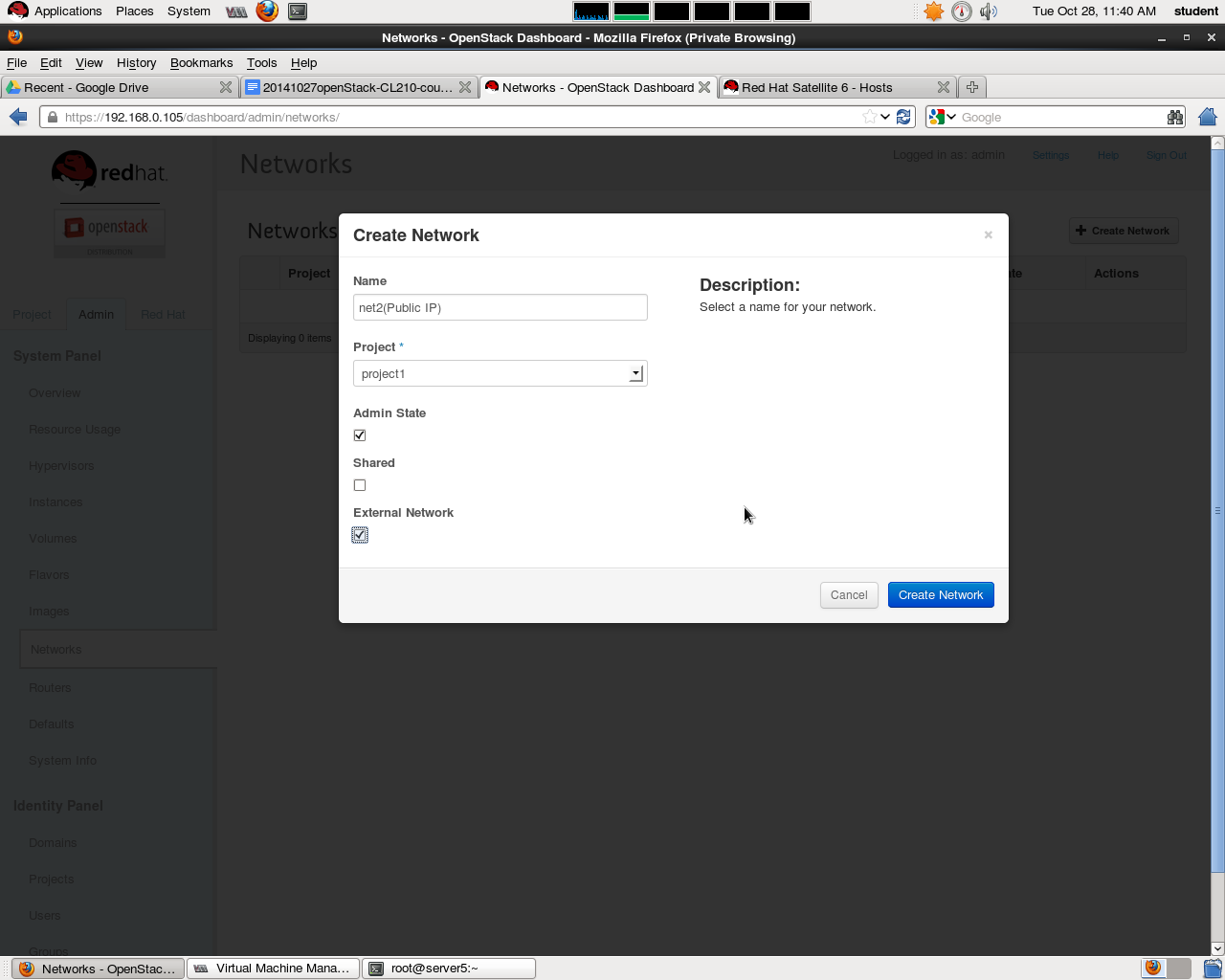

點選  Netwroks
點選  Create Network,
Name: net2 (Public IP)
Project: project1
勾選 External Network
點選 Create Netowrk



設定相關資訊
選取 net2(Public IP)


在 Subnets 區段, 點選 Create Subnet
Subnet Name:  subnet2( Public IP )
Network Address: 172.24.5.0/24
Gateway IP:  172.24.5.254


點選 Subnet Detail 分頁
取消 Enable DHCP
Allocation Pools:  172.24.5.1, 172.24.5.100
點選 Create


-- class break --

使用 user1 登入 openstack

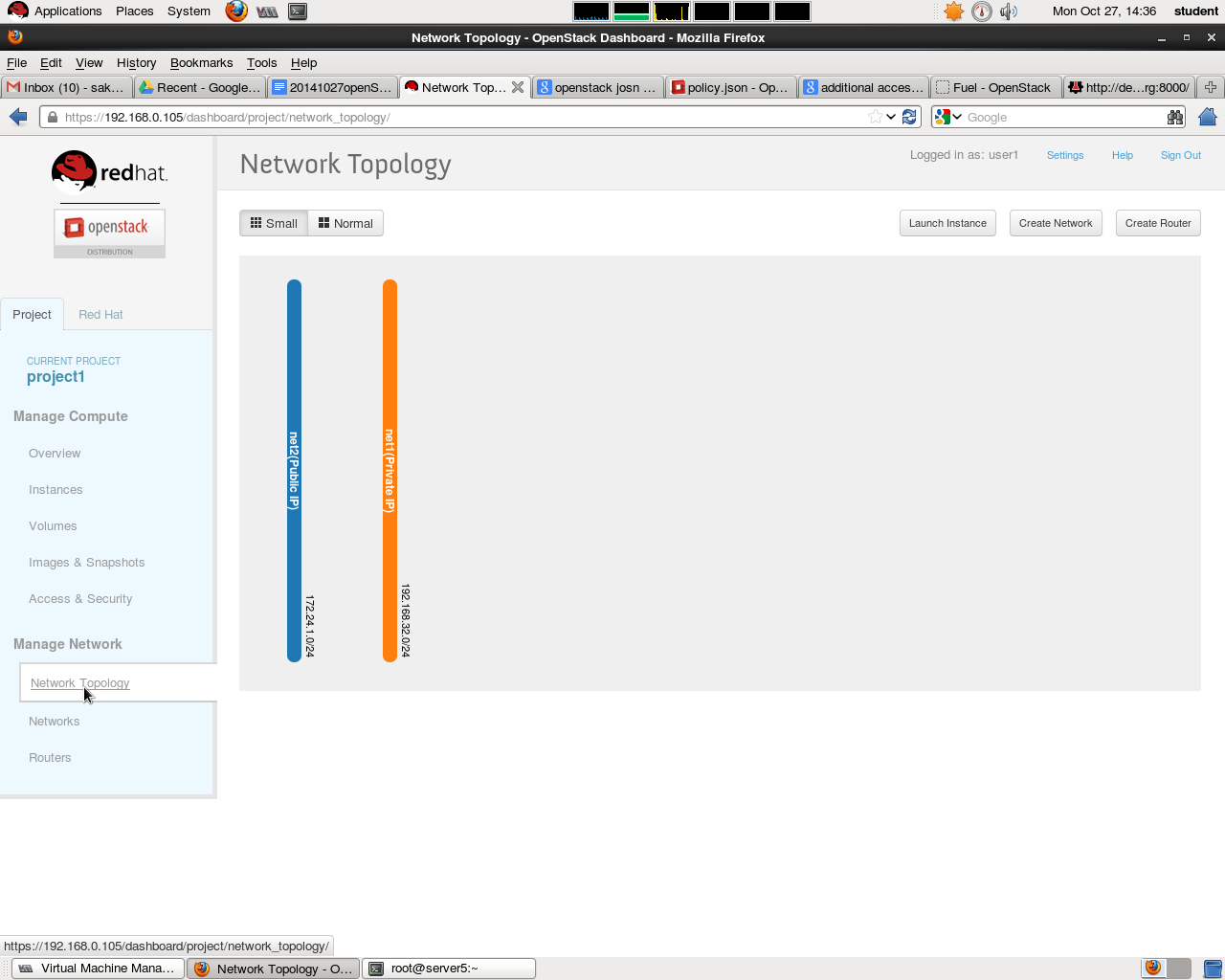

點選 Network Topology 觀察


workbook p21

建立 客戶端的私有網段
點選 Create Network
Network Name:  net1(Private IP)
點選 Subnet分頁
Subnet Name:  subnet1(Private IP)
Network Address:  192.168.32.0/24
點選 Subnet Detail 分頁
點選 Create
點選 Network Topology 觀察


點選 Routers
點選Create Router
Router1 Name:  router1
點選 Create router

點選 router1 的 Set Gateway 按鈕
External Network:  選取 net2(Public IP)
點選 Set Gateway
點選 Network Topology 觀察



串接私有網段
點選 Routers
點選 router1
點選 Add Interface
Subnet:  選取  net1( Private IP )
點選 Add Interface

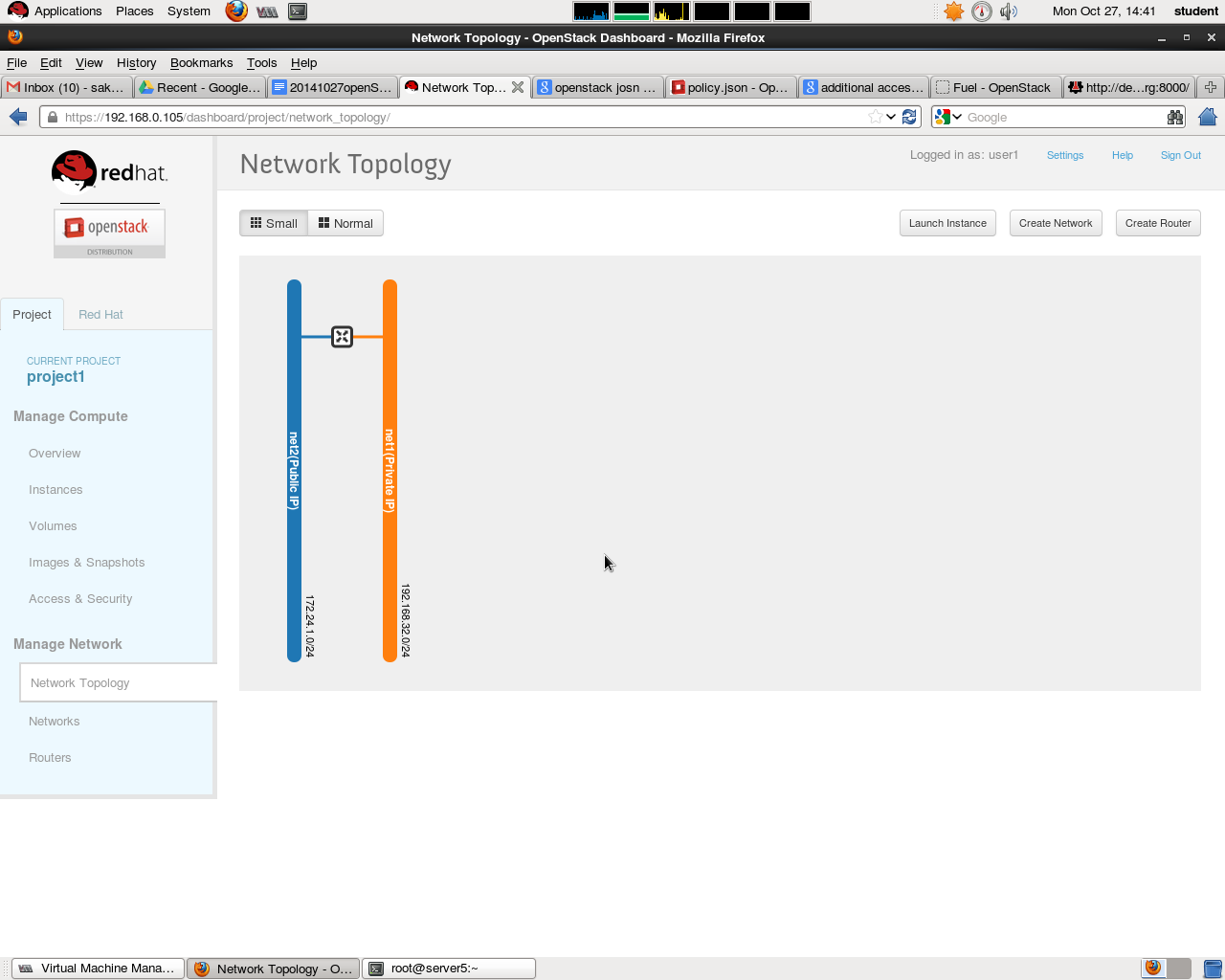

點選 Network Topology 觀察


準備template
workbook p21

點選 images & Snapshots
點選 Create Image
按照workbook的要求填入
Name:  small
Image Location:  http://instructor.example.com/pub/materials/small.img
Format:  QCOW2
Minimum Ram:  1024
點選Create Image

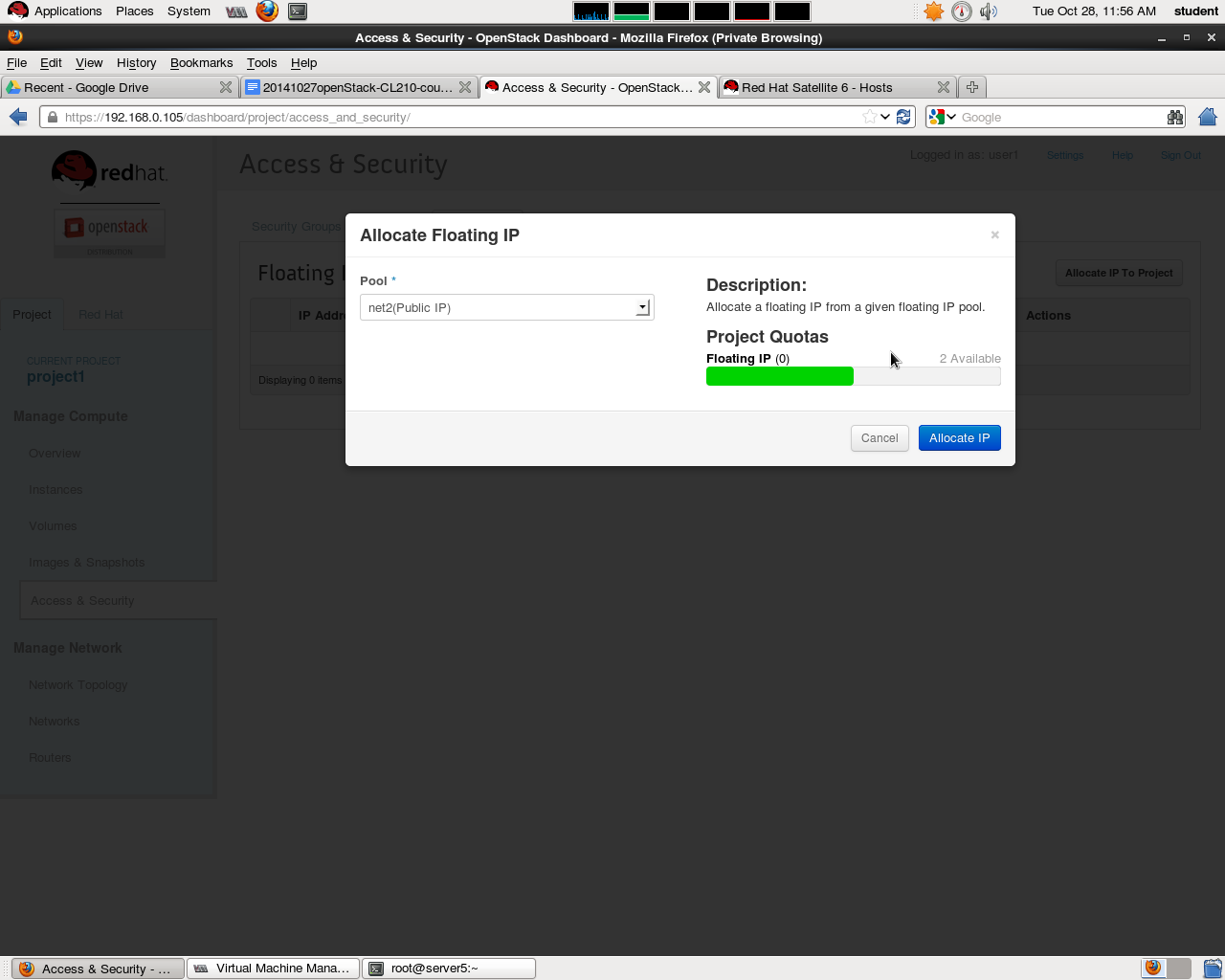

取得 public IP
workbook p22
點選 Access & Security
點選 Floating IPs 分頁
點選 Allocate IP To Project
點選 Allocate IP


觀察取得的 IP


產生金鑰

點選  Keypairs
點選 Create Keypair
Keypair Name:  test
點選 Create Keypair



將 test.pem 儲存下來( 私鑰 )

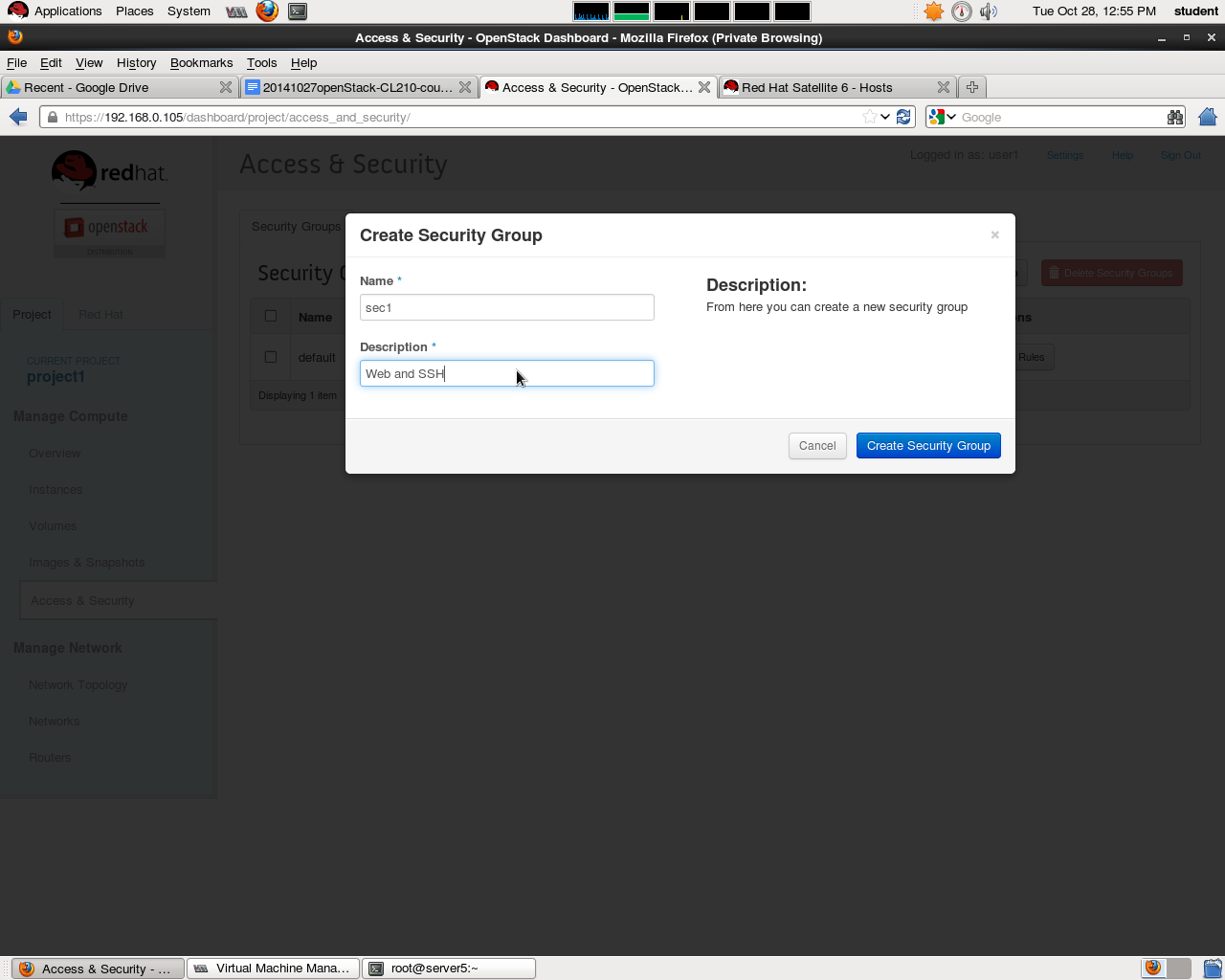

點選 Security Groups
點選 Create Security Group
Name: sec1
Description:  Web and SSH
點選 Create Security Group


設定 Security Group 規則
點選 sec1 的 Edit Rules
點選 Add Rule
Rule:  SSH
點選 Add

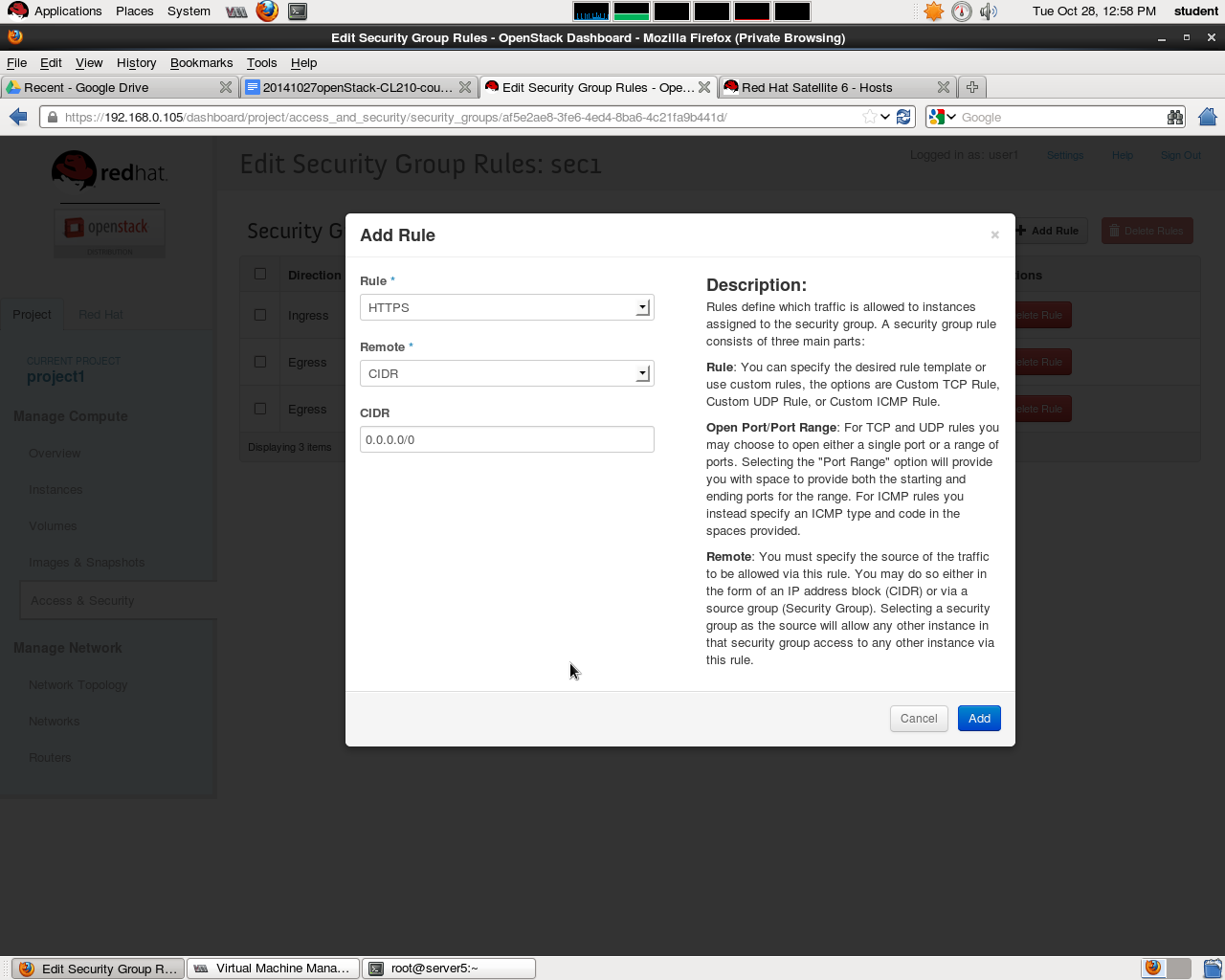

點選 Add Rule
點選HTTPS
點選Add

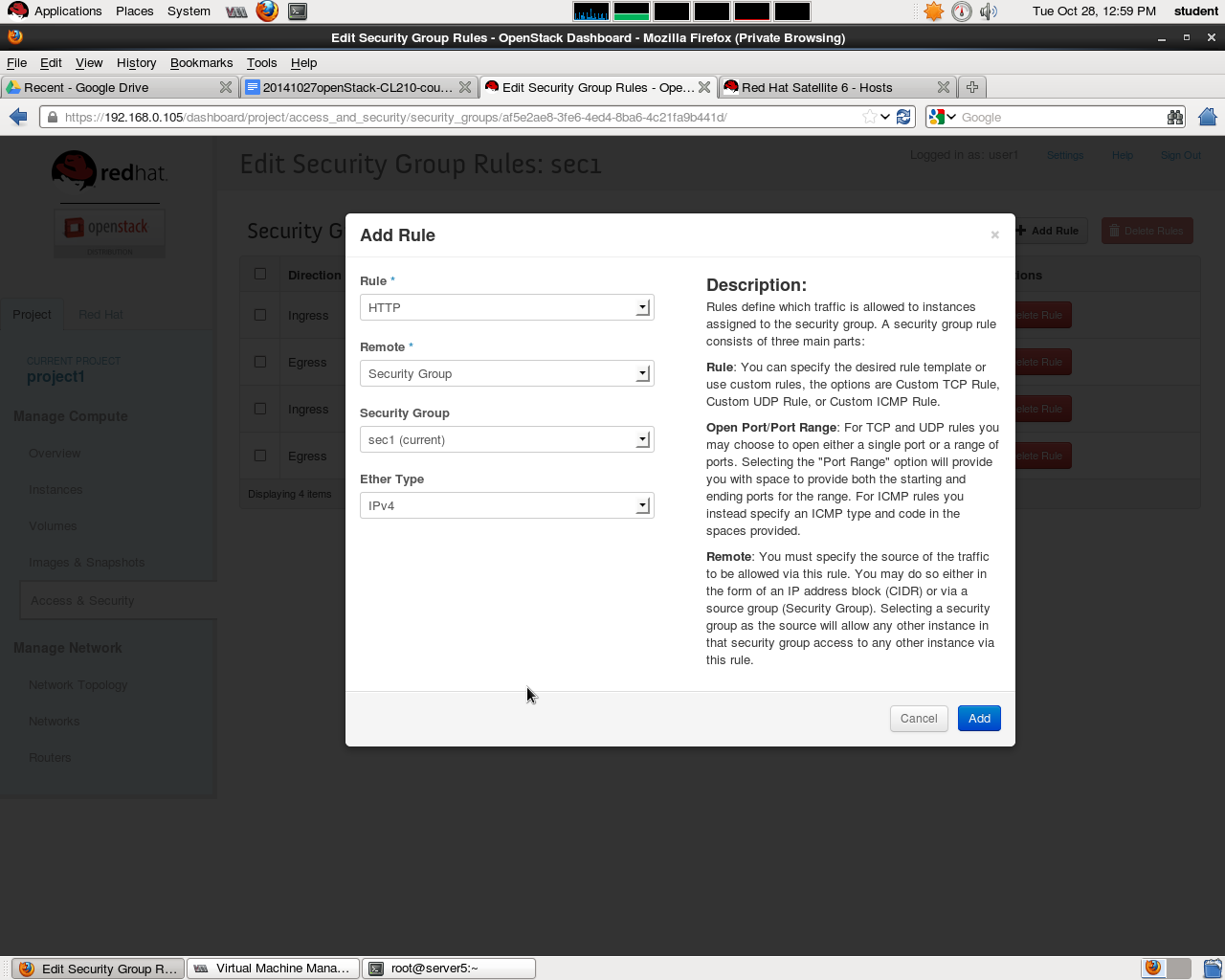

點選 Add Rule ( 設定只有 sec)
點選HTTP
Remote: Security Group
Security Group: sec1
點選Add

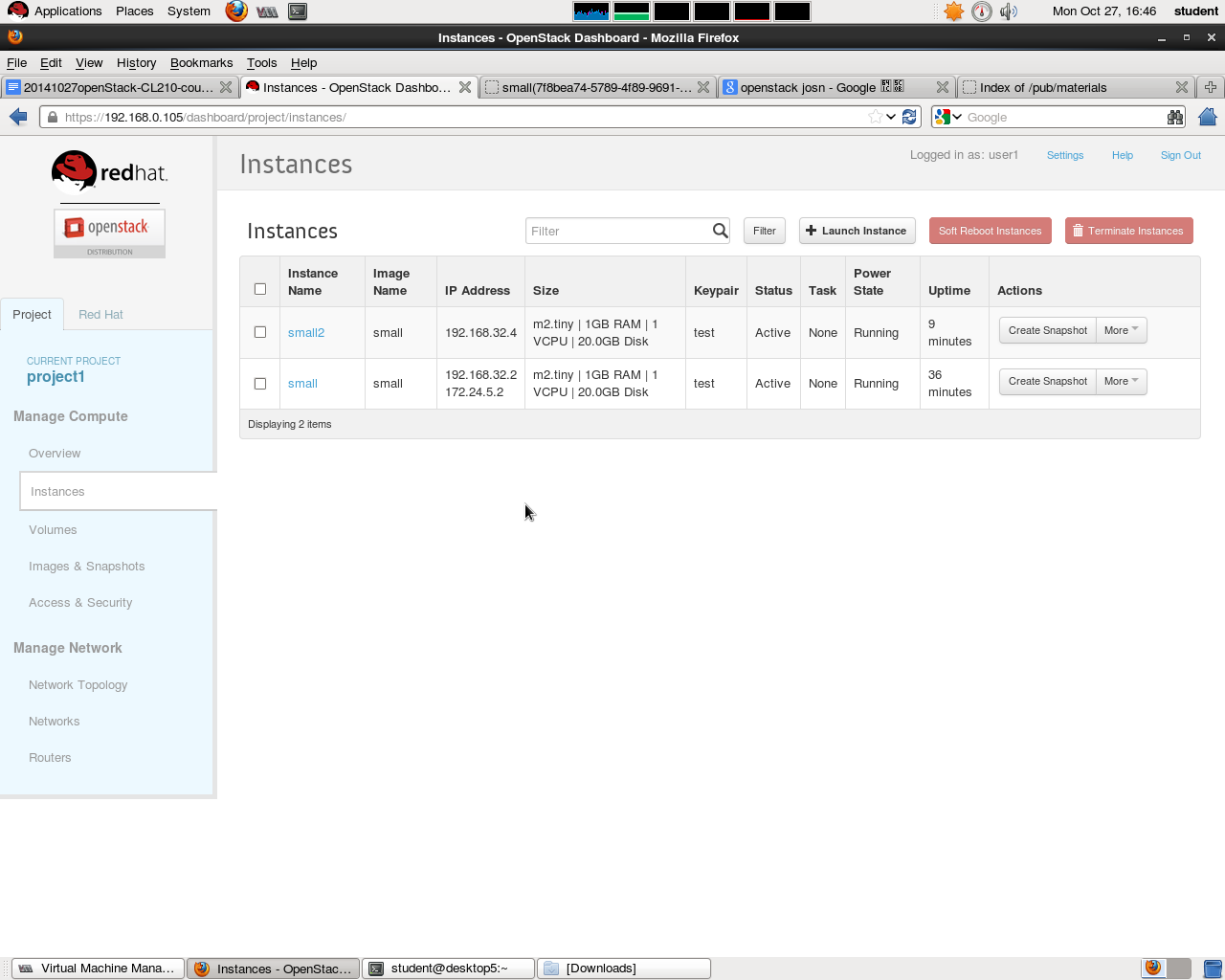

建立虛擬機器
workbook p23
點選 Instances 分頁
點選 Launch Instance
按照workbook 的資訊填入
Instance Name:  small
Flavor:  m2.tiny
Instance Boot Source:  Boot from image
Image Name:  small


點選 Access & Security 分頁
Keypair: test
Security Group: 勾選 sec1

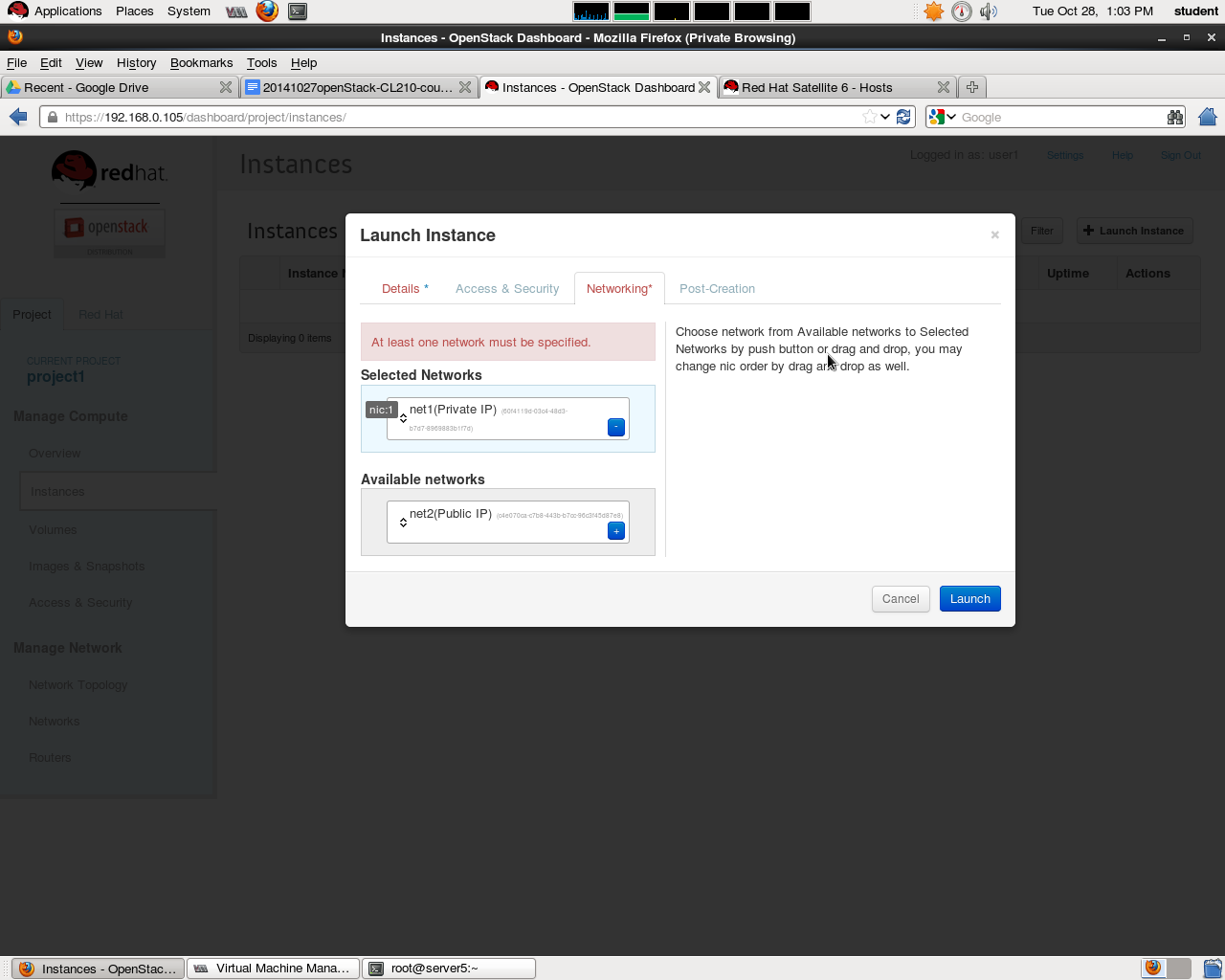

點選 Networking 分頁
拖曳 net1(Private IP)到 Selected Netwrok
點選 Launch


---- class break ----

設定 1 vs 1 NAT
Instances
點選small 的 More按鈕
點選 Associate Floating IP
IP Address:  選取一個 IP
點選 Associate


觀察 IP

試試看 用實體主機 ping VM ( 不能 ping 因為 firewall 沒有開 )

設定Security Group
點選 Access & Security
點選 sec1 的 Edit Rules
建立  規則, 測試 ALL ICMP
點選 Add

測試是否 可以 ping


使用 ssh key 連入 VM
在外面實體主機
$chmod 400  test.pem
$ ssh -i test.pem  root@172.24.5.2
The authenticity of host '172.24.5.2 (172.24.5.2)' can't be established.
RSA key fingerprint is 44:07:8e:01:ee:55:9e:b5:ce:c4:1b:e9:75:af:2f:19.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '172.24.5.2' (RSA) to the list of known hosts.
Last login: Mon Oct 27 04:45:01 2014
[root@host-192-168-32-2 ~]#



建立 Volumes
workbook p24

連入 VM

#cat   /proc/partitions
major minor  #blocks  name

253     0   20971520 vda
253     1 716800 vda1
253    16 2097152 vdb
253    32 524288 vdc


於管理界面, 點選 Volumes
點選 Create Volume
Volume Name:  myvol1
Size (GB):  2G
點選 Create Volume


建立 volume snapshot
點選 myvol1 的 Create Snapshot 來測試

掛載 Volume
點選  myvol1 的 Edit Attachments
Attach to Instance:  選取 small
點選  Attach Volume

於VM 裏面驗證
# cat   /proc/partitions
major minor  #blocks  name

253     0   20971520 vda
253     1 716800 vda1
253    16 2097152 vdb
253    32 524288 vdc
253    48 2097152 vdd


Notes:
